DN125 Concrete Pump Rubber Hose 2"-6" 148 Low Pressure Hose 175 High Pressure Hose
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| モデルNO | 2インチ～6インチ | サイズ | DN50～DN150 |
|---|---|---|---|
| 線鋼層 | 2/4層のワイヤー | 長さ | 1～24m |
| 耐用年数 | 25000cbm-30000cbm | 働き圧力 | 85bar-130bar |
| ハイライト | DN125 Concrete Pump Rubber Hose,2in Concrete Pump Rubber Hose,6in Concrete Pump Hose |
||
製品の説明

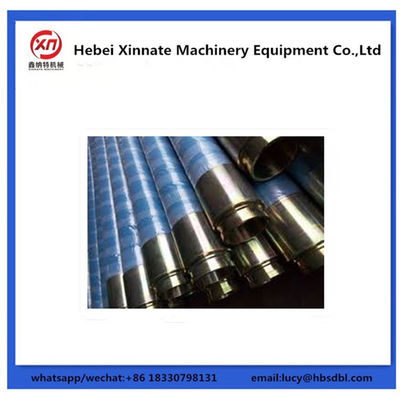

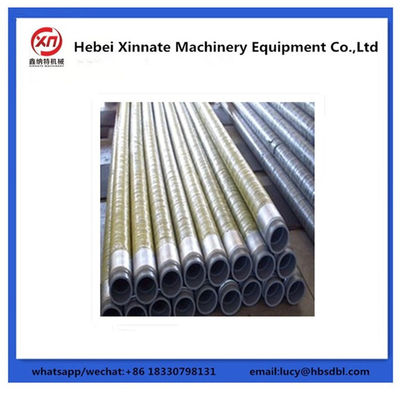

Concrete Pump Hose/DN125 Rubber Hose/148 Low Pressure Hose/175 High Pressure Hose
1.Product description
Pump trucks and Concrete Placing Boom hoses are common accessories used in concrete transportation. The pump hoses produced by our company are suitable for the end connection of concrete transportation of construction engineering machinery pump trucks, which can flexibly change the watering position and small-scale concrete paving. It can be completed by artificially swinging rubber hose. It has the characteristics of environmental protection, high pressure resistance, high wear resistance, durability and durability.
| Name | Description |
| Rubber hose | DN50 2''*85BAR-100BAR*steel wire 2*SK 50 |
| Rubber hose | DN65 2.5''*85BAR-100BAR*steel wire 2*SK 65 |
| Rubber hose | DN80 3''*85BAR-100BAR*steel wire 2*SK 80 |
| Rubber hose | DN100 4''*85BAR-100BAR*steel wire 4*SK 100 |
| Rubber hose | DN125 5''*85BAR-100BAR*steel wire 4*SK 125 |
| Rubber hose | DN125 5''*85BAR-100BAR*steel wire 4*Schwing 5'' female |
| Rubber hose | DN150 6''*85BAR-100BAR*steel wire 4*SK 150 |
2.Schematic diagram of hose flange
3.Schematic diagram of hose clamp connection
4.Hose packaging diagram
5.Other concrete pump main parts my company can also supply for you :
About other concrete pump spare parts which are used on the mobile pump and stationary pump , including Concrete Pump Elbow , Concrete Pump Clamp coupling, Concrete Pump Reducer Pipe, Concrete Pump Rubber Hose, Concrete Pump Rubber Piston, concrete pump delicery cylinder , Concrete Pump Wear Plate and cutting ring, and so on parts at stock !
6.Welcome your inquiry
